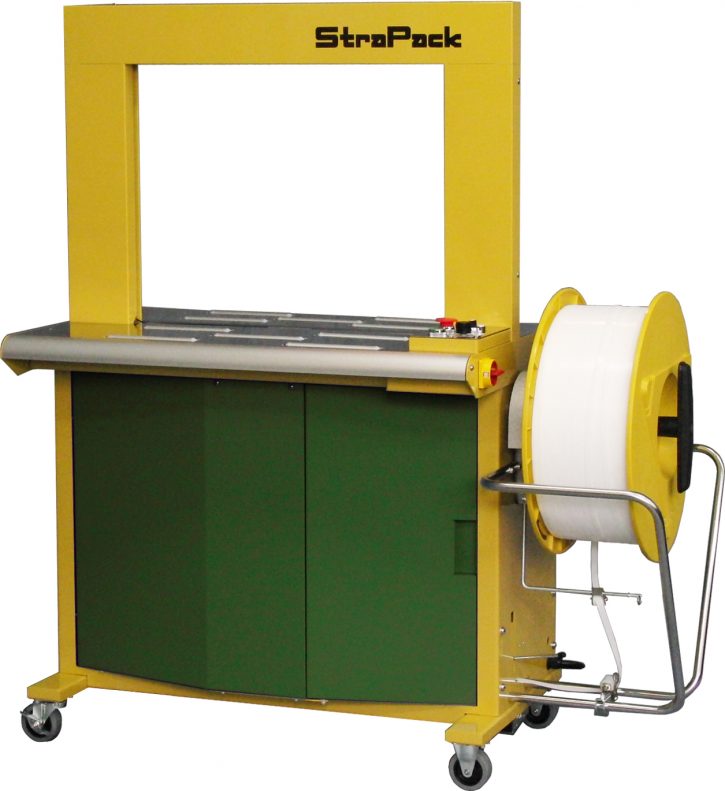

Strapack SQ-800 Hi-Speed Strapping Machine – User Guide

Overview

• The Strapack SQ-800 is a fully automatic high-speed P.P. strapping machine.
• Suitable for cartons, printed materials, and general packaging applications.
• Designed for continuous operation with high efficiency and low maintenance.

Key Features

• High Speed Performance
  • Up to 54–55 cycles per minute (≈1.1 sec per strap)
• DC Direct Drive System
  • Eliminates clutch, brake, and V-belts → less wear & maintenance
• Programmable IC Control System
  • Enables precise control and diagnostics
• Automatic Re-Feed Function
  • Prevents strap feeding errors
• Adjustable Tension
  • Up to 450N (CE) / 784N (Non-CE)
• Quiet & Eco-Friendly Operation
  • Noise level approx. 83.2 dB(A)
• Advanced Features
  • Anti-jam strap ejection
  • Quick heater warm-up
  • Easy strap loading
  • Lubrication-free sealing head

Machine Specifications (Highlights)

• Power Supply
  • Single phase: 220–240V / 50–60Hz (or 120V depending on region)
• Speed
  • Up to 54 bundles/min
• Strap Compatibility
  • Width: 5mm to 15.5mm (model dependent)
  • Thickness: 0.4–0.7mm
• Package Size Range
  • Min: approx. 80 × 30 mm
  • Max: approx. 620 × 480 mm
• Operating Conditions
  • Temperature: 0°C to 40°C
  • Humidity: 0–80% (no condensation)

Main Machine Components

• Arch Unit
  • Guides strap around the package
• Sealing Unit
  • Heat seals the strap joint
• Strap Feed System
  • Controls strap movement (forward & reverse)
• Pool Box
  • Stores strap for continuous operation
• Control Panel
  • Houses switches, indicators, and controls
• Electrical System
  • Includes IC control box, sensors, and motors

Control Panel & Functions

Primary Controls

• Power Switch
  • Turns machine ON/OFF (main control)
• Operation Ready / Power Lamp
  • Indicates machine readiness (≈25 sec warm-up)
• Start Switch
  • Initiates strapping cycle
• Stop Switch
  • Emergency stop (locks when pressed)
• Forward/Reverse Switch
  • Manually feed or retract strap
• Tension Dial
  • Adjust strap tension as per package

Optional Start Methods

• Foot Switch / Foot Bar
• Table Ball Switch
• Allows hands-free operation

Operating Process

1. Loading Strap

• Place strap coil on reel in correct direction
• Secure with reel guide and nut
• Cut outer binding of strap coil

2. Threading Strap

• Insert strap into rollers and pool box
• Turn ON machine → auto threading begins
• Ensure correct strap length (10–30 cm)

3. Strapping Operation

• Place package on table
• Adjust tension
• Press Start Switch
• Machine will:
  • Feed strap
  • Apply tension
  • Seal and cut automatically

4. End of Operation

• Reverse strap out of arch
• Remove remaining strap from machine
• Turn OFF power

Safety Guidelines

General Safety

• Read manual before operation
• Only trained personnel should operate or service the machine
• Do not use for:
  • Explosives, chemicals, food items, fragile goods, or live animals

Operational Safety

• Do not place hands inside the arch during operation
• Do not touch strap while machine is running
• Wear proper clothing and ear protection (~83 dB)
• Ensure safety doors and panels are closed

Electrical & Maintenance Safety

• Turn OFF power before maintenance
• Heater temperature can reach ~400°C
• Avoid contact with moving parts
• Use only approved spare parts

Maintenance Guidelines

Daily

• Check:
  • Seal quality
  • Noise and vibration
  • Power cable condition
• Clean strap dust and debris

Monthly

• Inspect:
  • Gearbox leakage
  • Motor condition

Semi-Annual

• Check:
  • Safety switches
  • Electrical circuits

Troubleshooting (Common Issues)

Machine Not Starting

• Check:
  • Power supply and fuse
  • Stop switch (may be locked)
  • Motor overload (reset required)

Strap Feeding Issues

• Causes:
  • Incorrect threading
  • Dirty strap path
  • Improper pool box strap level
• Solution:
  • Clean and re-thread strap

Sealing Problems

• Check:
  • Heater temperature
  • Strap alignment
  • Seal time settings

Tension Issues

• Adjust:
  • Tension dial
  • Tension pressure settings
  • Package positioning

Important Notes

• Always use VIJAYCO Hi Speed Strapping Roll on these Machines.
• Maintain correct strap amount in pool box
• Refer to wiring diagrams (Chapter 4) for electrical troubleshooting
• Refer to adjustment section (Chapter 6) for fine tuning
