Purpose of the limit switch sensors.

Purpose of the limit switch sensors.

Purpose of the limit switch sensors.

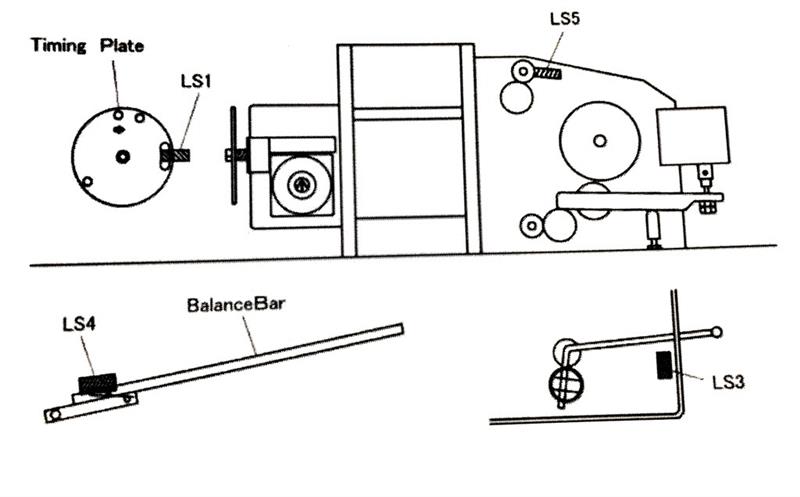

1. LS1 (Timing & Home Position Confirmation Switch)

This Proximity Switch detects the holes in the Timing Plate and initiates the following movements; when LS1 detects a hole, the switch is actuated and the lamp (LS1) on the Control Box will light.

2.LS3 (End of Strap Detection Switch)

This micro switch detects depletion of the strap. When the switch is actuated, the power indicator lamp flashes and machine stop after another one strapping is made. Strap is not forwarded, sealing motor stops, and the start switch does not activate. To resume operation thread, strap a new coil according to "Loading Strap".

3.L54 (Strap Amount in the Pool Bax)

This micro switch detects and sends signal that strap contained in pool box is nearly empty. When LS4 is activated, the lamp (LS4) on the control box lights.

4.L55 (Reverse Pulse Sensor)

This proximity switch detects that reversing of strap is completed and initiates tensioning.
